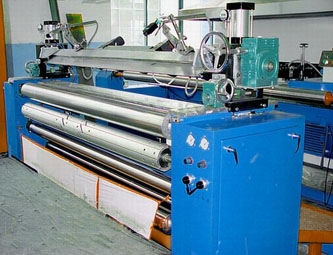

TN35LI mod. Flock machine Line

The machine can be used independently or combined, either with one or more modules in order to obtain higher flocking speeds to flock undercut profiles.

Each module includes:

Flock distribution section, consisting of a longitudinal flocking hopper containing a rotating brush. The brush is opposed to a wire mesh frame that can be easily removed for cleaning.

Brush rotation speed can be adjusted, and a motorized system allows adjustment of hopper height relative to the profile as well

Flock recovery and recirculation section , consisting of a flock collector installed in the lower section of the machine, equipped with a screw conveyor which transports flock back to the flocking hopper. Flock level inside hopper and collector is controlled by sensors. The unit must be connected to a suitable suction group

Big power flocking machine

Safety systems:

Sealed aluminium and glass windows placed on all sides.

The unit is depressurized in order to prevent flock pollution and protect operator from the electrostatic field

Automatic grounding system, discharging high voltage to the ground when generator is shut off or windows are opened

On-board control panel

Internal lighting to check working area.

The unit can be controlled with a PLC system.

The main parameter:

Useful flocking width: 150 mm

Electrical field length: 800 mm

Power source: 220V~3800V/50 Hz/three-phase

Installed power: 2,5 Kw
