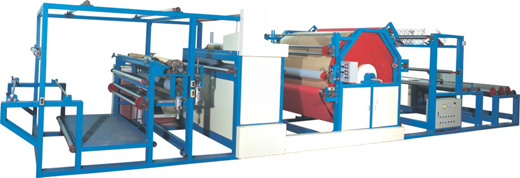

TN34L7 mod. Flock machine Line

The unit consists of:

Completely sealed cabin to prevent flock pollution Variable speed conveyor belt that can be equipped with special adaptable feeding guides for optimal object placement

First electrostatic flocking section to uniformly cover object surface, consisting of two electrostatic flock distribution hoppers with motorized height adjusting system and rotating brushes equipped with speed variator

Second flocking section with electrostatic spray system to cover inner surfaces and equipped with four electropneumatic flock distributors

Two flocking machines, one for each flocking section

Flock recycling group, placed below the conveyor belt. The collector is connected to a centralized suction system

Control panel.

The main parameter:

Power source:220V~380V/50 Hz/three-phase

Installed power: 17 Kw
